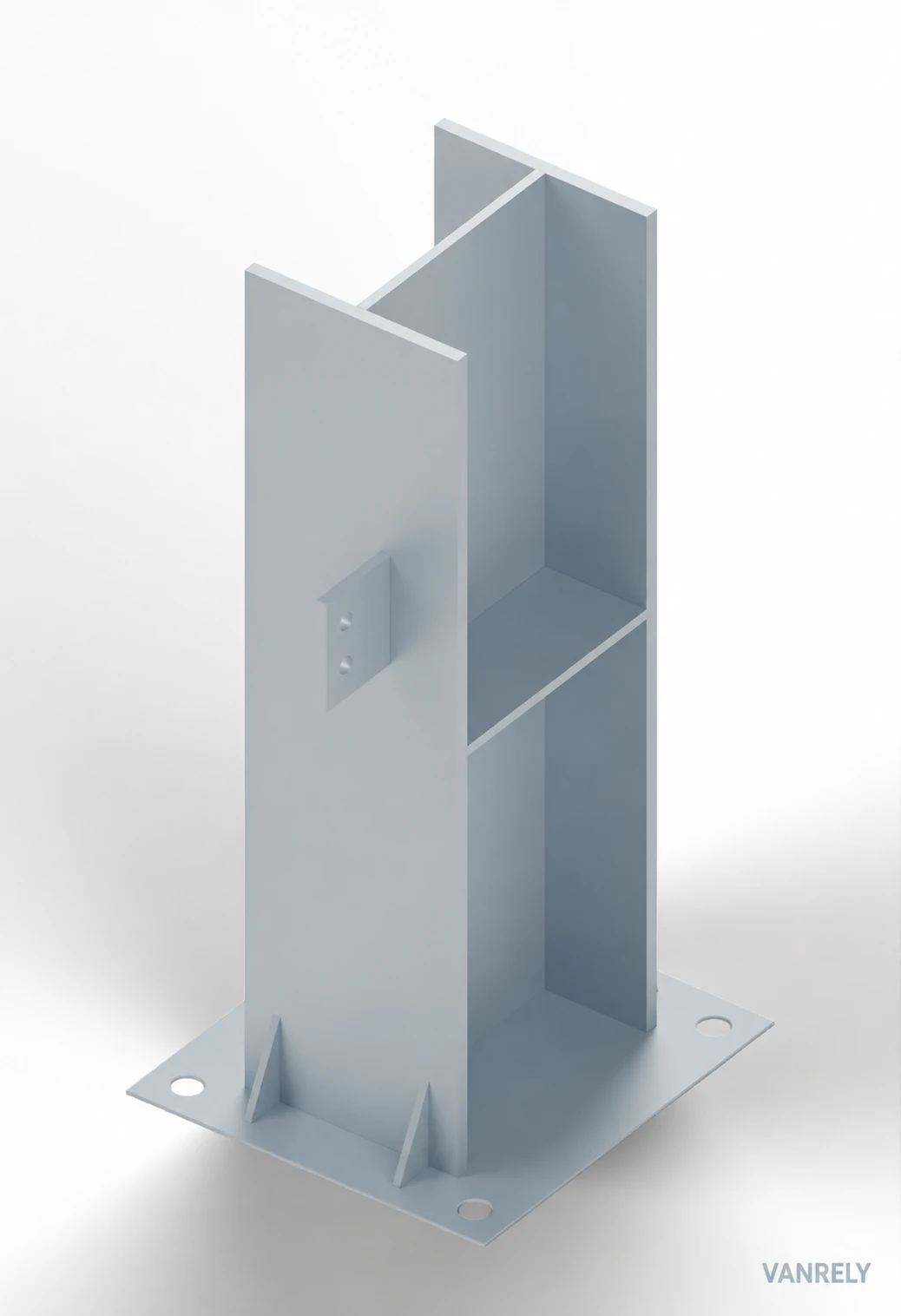

H-section beams & columns
Welded or hot-rolled H-sections for beams and columns. Specify the section depth, flange width, web and flange thicknesses, and member length.
Enquire about this item
Structural steel
Steel Beams & Columns
H-section beams and columns, box columns, cruciform columns and tubular columns. Fabrication and supply follow customer-approved drawings and project specifications.
- Member forms
- H-section / box / cruciform / tubular
- Supply basis
- Approved drawings and project specifications
- Delivery preparation
- Member marks, packing and agreed documents
01 / PRODUCT DETAILS
Four primary member forms
Compare the member forms below. The enquiry checklist at the end of this page covers dimensions, material requirements and delivery information.

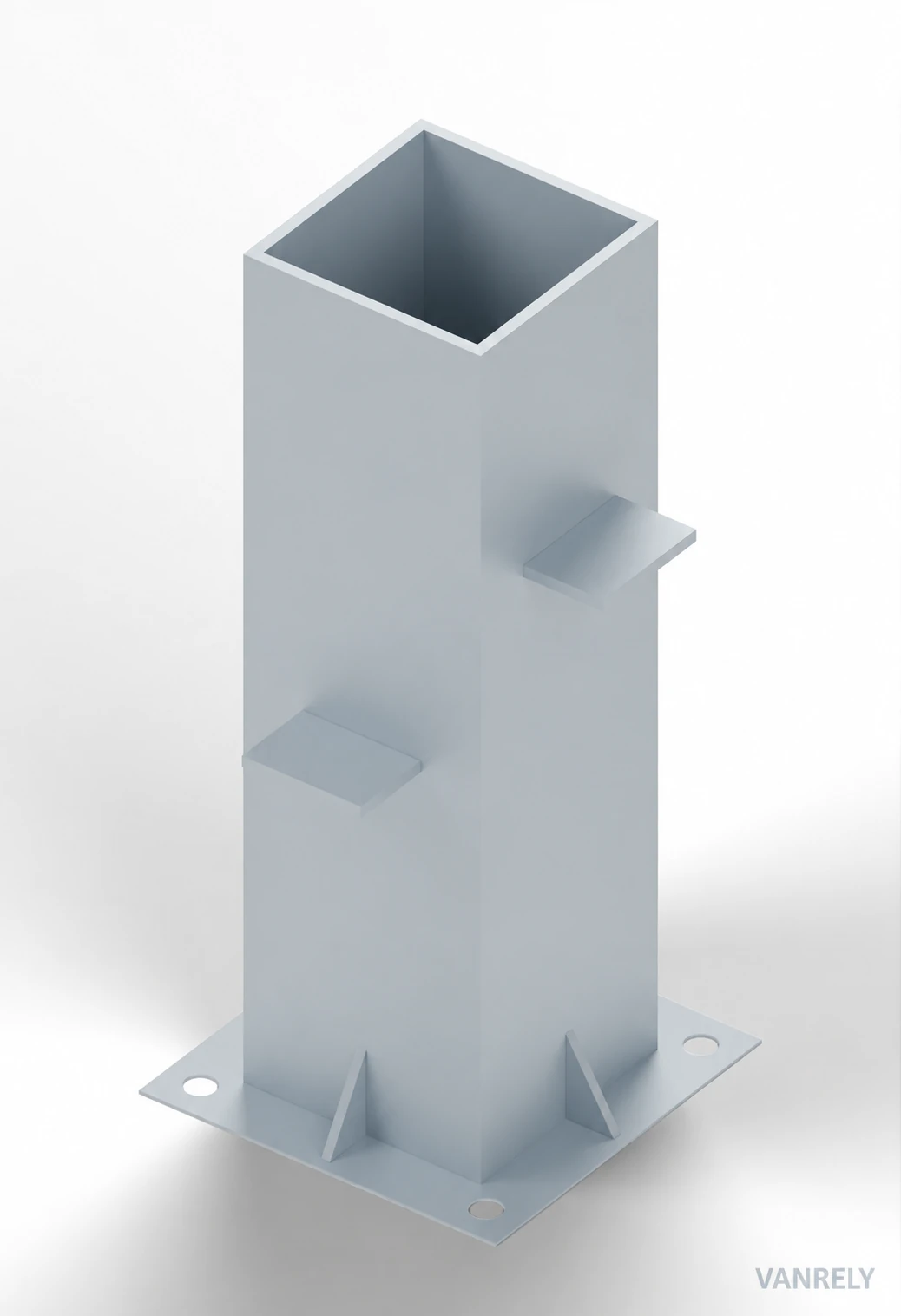

Box columns
Closed box-section columns. Define the outside dimensions, plate thicknesses, internal stiffening and beam-to-column connection details.
Enquire about this item

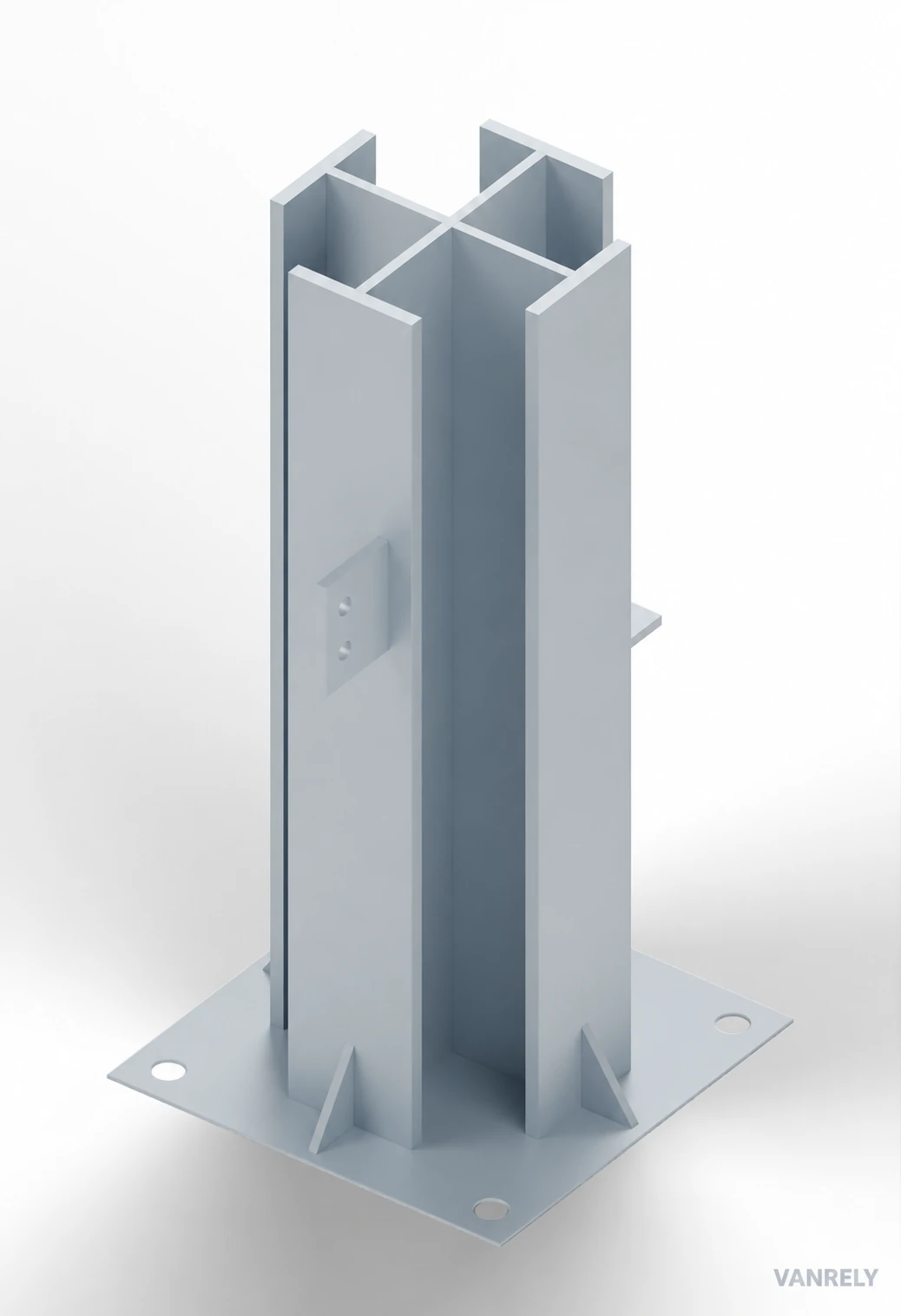

Cruciform columns
Columns with a cross-shaped section. Show the dimensions in both directions, plate thicknesses and the orientation of connecting members.
Enquire about this item

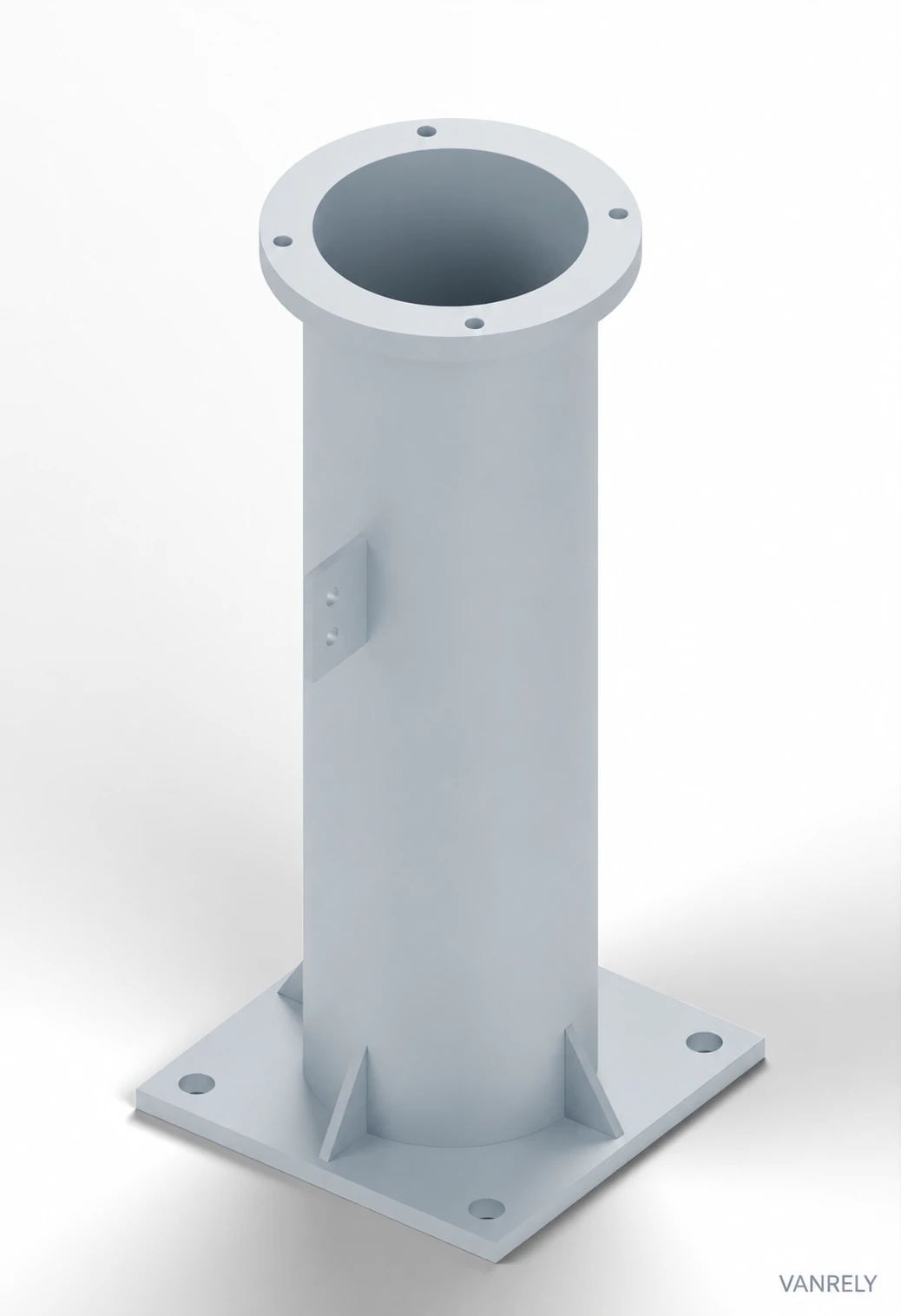

Tubular columns
Hollow tubular columns with specified end connections. Provide the tube dimensions, wall thickness, length, base plate and flange details where applicable.
Enquire about this item02 / PRODUCT DETAILS
Connection plates, holes and stiffeners
Confirm hole positions, end plates, base plates, stiffeners and the required surface finish with the member schedule.
03 / PRODUCT DETAILS
Surface protection options
VANRELY coordinates surface preparation, painting, hot-dip galvanizing and fire protection to the agreed project specifications. Touch-up materials, coating tools and inspection instruments can be included in the order.
Paint system
Confirm surface preparation; compatible primer, intermediate coat and topcoat; dry film thickness per coat and in total; colour and touch-up requirements. Recoating intervals follow the product instructions.
Hot-dip galvanizing
Confirm the specified galvanizing requirements, coating thickness and inspection requirements.
Fire protection
Confirm the selected fire-protection system, performance requirements and compatible coating products.
04 / PRODUCT DETAILS
Production checks and supporting records
VANRELY coordinates fabrication and inspection requirements with suppliers. The order identifies who performs each check, who issues the records and which documents VANRELY reviews.
Fabrication checks
The project scope may include incoming-material checks, cutting, assembly, welding, straightening, machining, surface protection and final inspection. Request any customer-appointed or third-party inspection in the enquiry, with its scope and required report.
Linked material and delivery records
Agree how heat numbers and material certificates (MTC) link to member references, dimensional records, weld records and any specified non-destructive testing (NDT) records. Include coating or galvanizing records, package numbers, packing lists and a document index as required.
ENQUIRY CHECKLIST
Information needed for a quote
Specifications, matching parts and document requirements are confirmed for each order.
| Item | Information to provide |
|---|---|
| Section form | H-section, box, cruciform or tubular |
| Drawing dimensions | Section sizes, plate or wall thicknesses and lengths |
| Steel grade | Required grade and material standard |
| Fabrication & finish | Hole positions, end plates, base plates, stiffeners and surface finish |
| Marking & delivery | Member marks, packing and accompanying documents |
